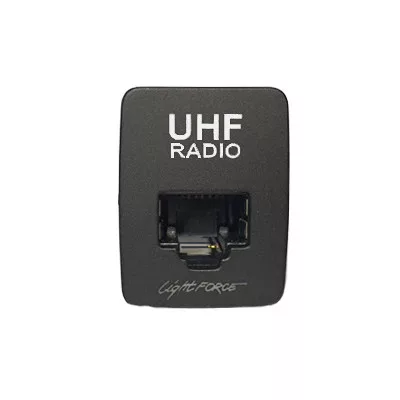

This RJ45 Pass Through Connector allows a remote microphone or LAN connection fitted with an RJ45 connector to be integrated directly into a range of OEM switch blank locations in some Nissan vehicles.
The new Nissan RJ45 Passthrough Connector enables a UHF microphone fitted with an RJ45 connector to be directly installed into the vehicle's switch blank location. The UHF head unit can then be remotely mounted, allowing for the convenience of connecting the microphone directly into the RJ45 Passthrough Connector.
Suitable for the following vehicles:
- Nissan Navara NP300 (2016 - Current) (main dash)
- Nissan Pathfinder R52 (2012 - Current)
- Nissan X-Trail T32 (2014 - Current)
Specifications Include:
- Total mounting depth: 36mm (excludes connector)
- Housing Material: PVC
- Colour: Black
- Metal shielded around RJ45 receptacle to minimise RF interference of the connected cables
- Dual internal lateral supports to ensure the UHF plug is fully retained
- RJ45 CAT6 compliant
- LED backlit illumination (seven colours available)
- Made in Australia
Wiring Instructions:
- Two wire installation:
- Red wire: Connect to existing dash light circuit
- Black wire: Connect to negative (ground)
