White (off) / Blue (on)

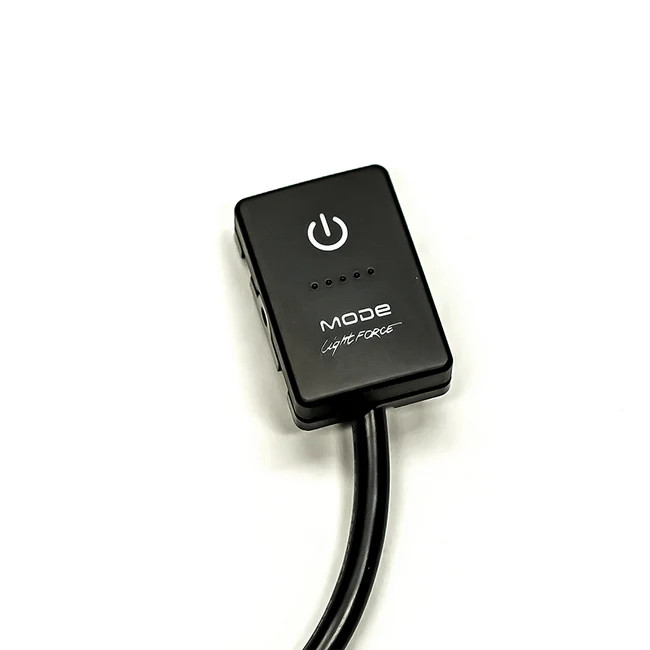

Designed solely for the operation of Lightforce BEAST driving lights. This switch integrates neatly into the existing factory switch blank locations with no modification required to the vehicle's interior, resulting in an OEM style fitment.
For a complete plug and play installation, you must use this switch with Lightforce BEAST Universal harness #LFDLHBEAST-U.
Ideally suited for some Mazda BT-50 & Isuzu D-Max factory switch locations.
These include:
- Isuzu D-Max 3rd GEN 9/2020 - Current
- Isuzu Mux 2nd GEN 9/2020 - Current
- Mazda BT-50 3rd GEN 2020 - Current
Wiring Instructions
10-16V input, 3A output (use with relays).
Switch Cut Out Size
18mmx 28mm
Specifications
Ideally suited for some Isuzu & Mazda factory switch locations.
Instructions:
Mode Select - Short press A quick press of the mode button will switch the BEAST lights between SPOT and FLOOD mode.
Mode Select - Long press A long press will activate BEAST mode. Note: while in BEAST mode, a short press will return you back to SPOT mode.
Resync Process – Long press For BEAST driving light installations where more than one light is installed, it is possible for lights to be out of sync / ie. different modes. To resync driving lights, long press the mode select button
