Details
What's included:

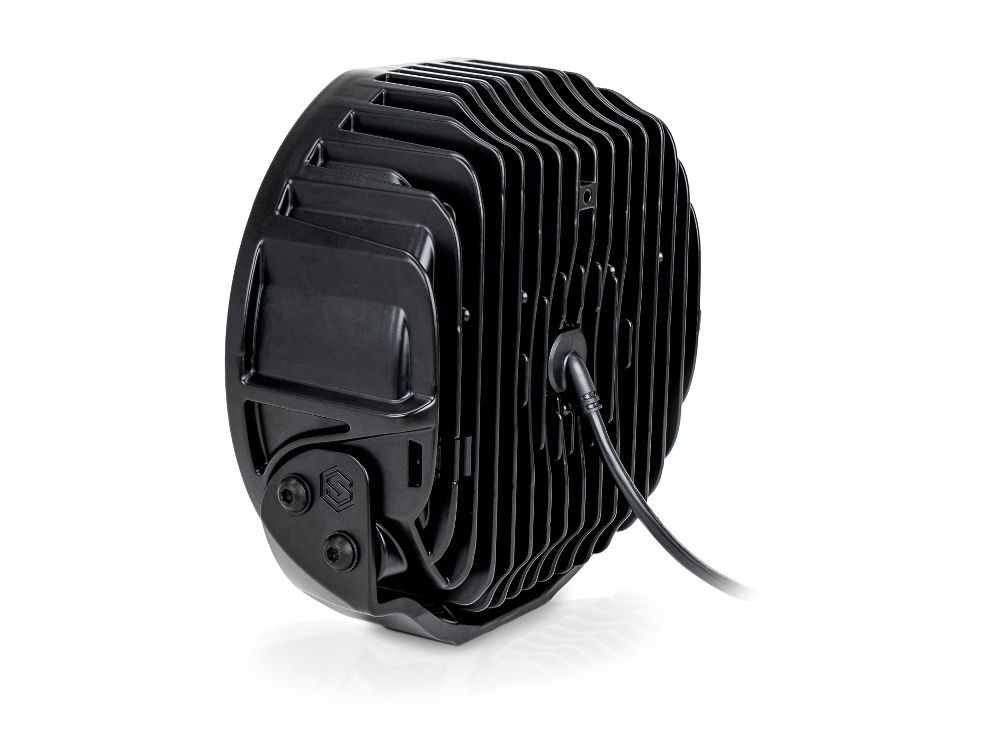

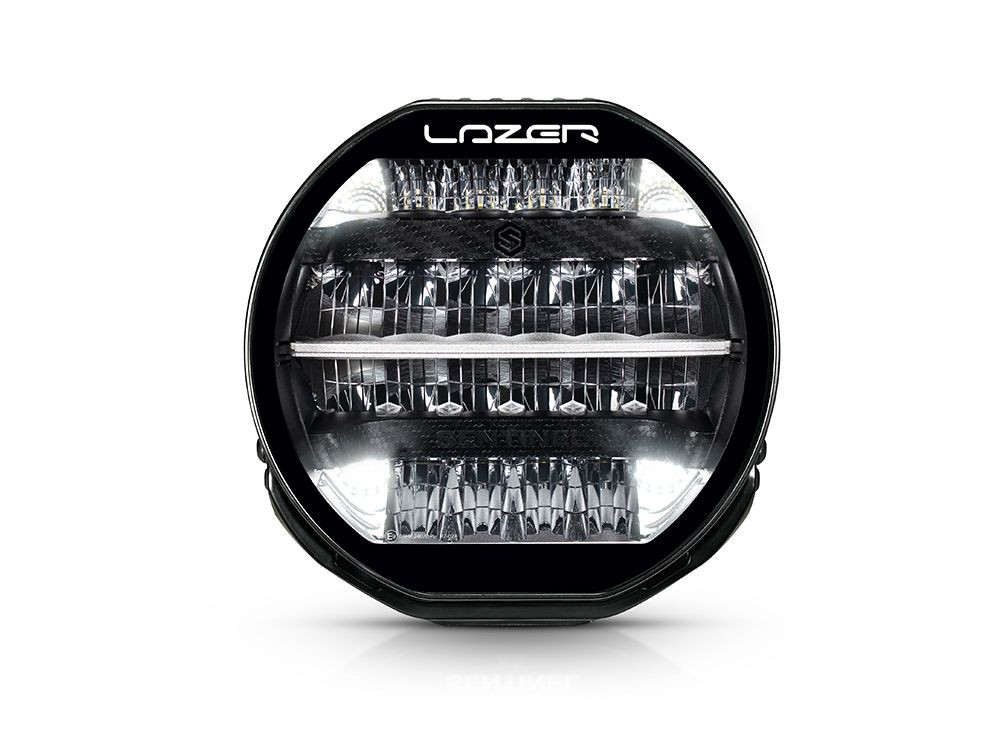

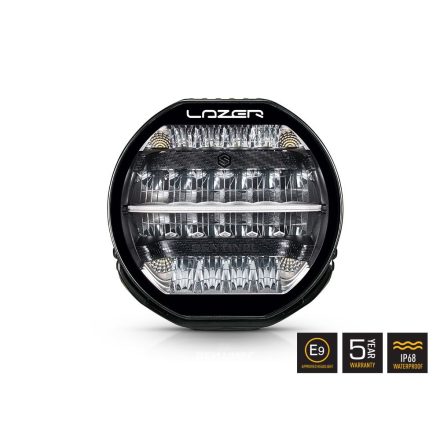

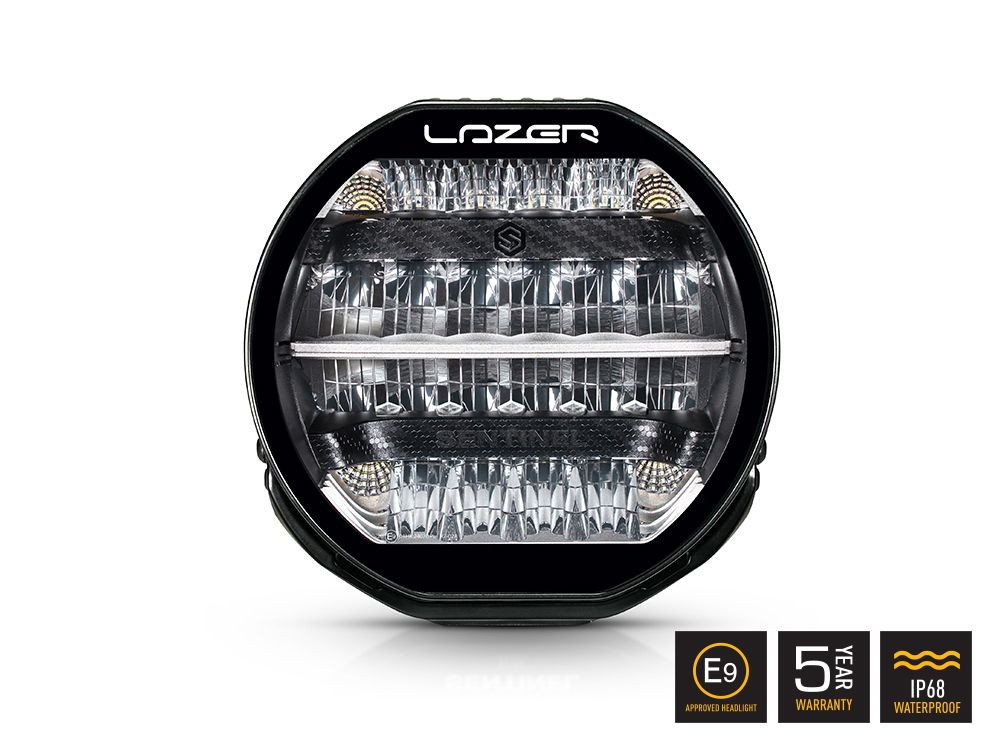

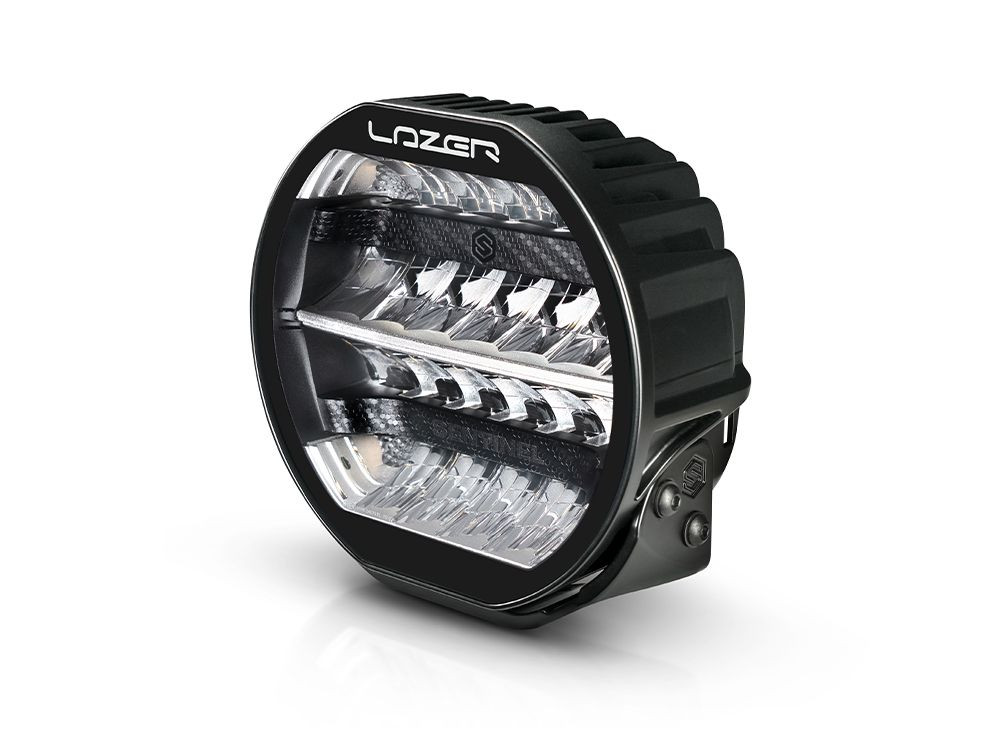

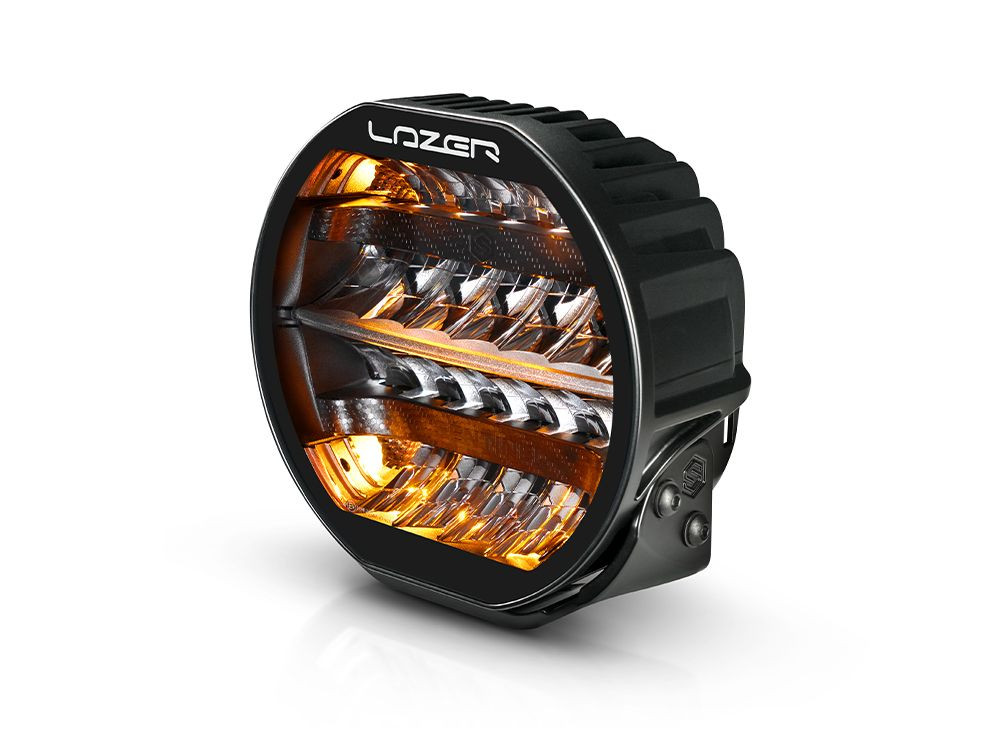

• x1 Sentinel (Black) LED Lamp

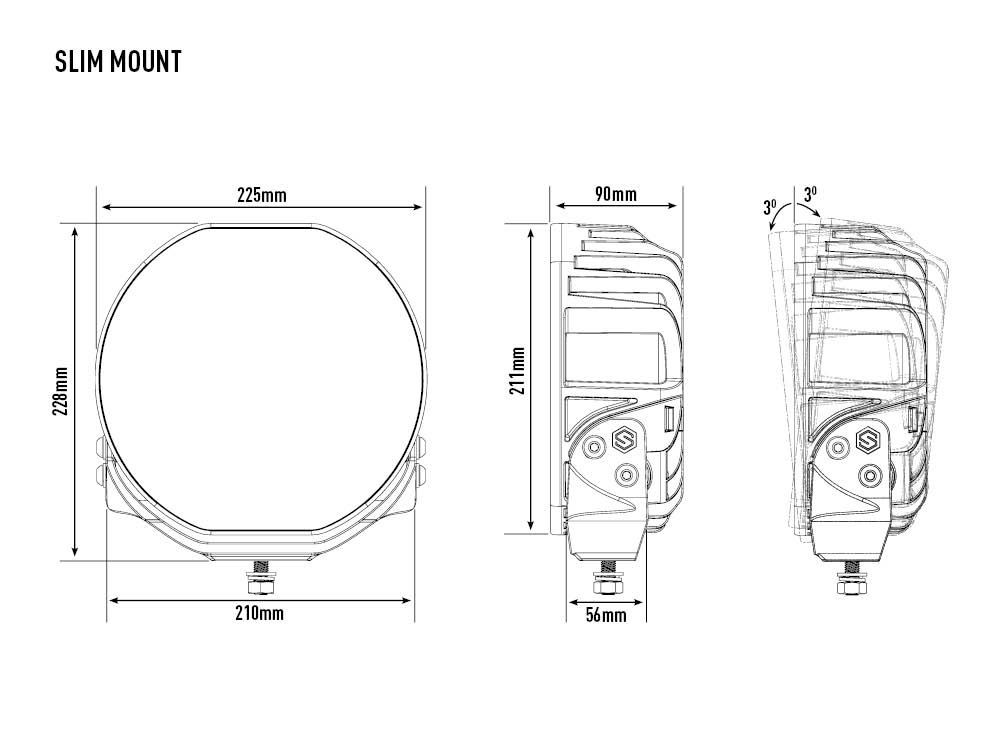

• x1 ’Slim’ Mount Kit (1141k)
• x1 Installation Instructions
Technical specifications: E-Boost E-Mark Mode
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 2.5 kg 2.4 kg
High beam function
Total Luminous Flux 9520 Lm 1904 Lm
Colour Temperature 5000k 5000k
Number of High Output LEDs 20 20
Power Consumption 87 Watts 17 Watts
Peak Current Draw (10v) 8.1 Amps 1.6 Amps
Current Draw (at 14.4V) 6 Amps 1.2 Amps
Start-up Time * 5ms 5ms
Certification
High Beam N/A ECE R112
E-Mark Ref N/A 20

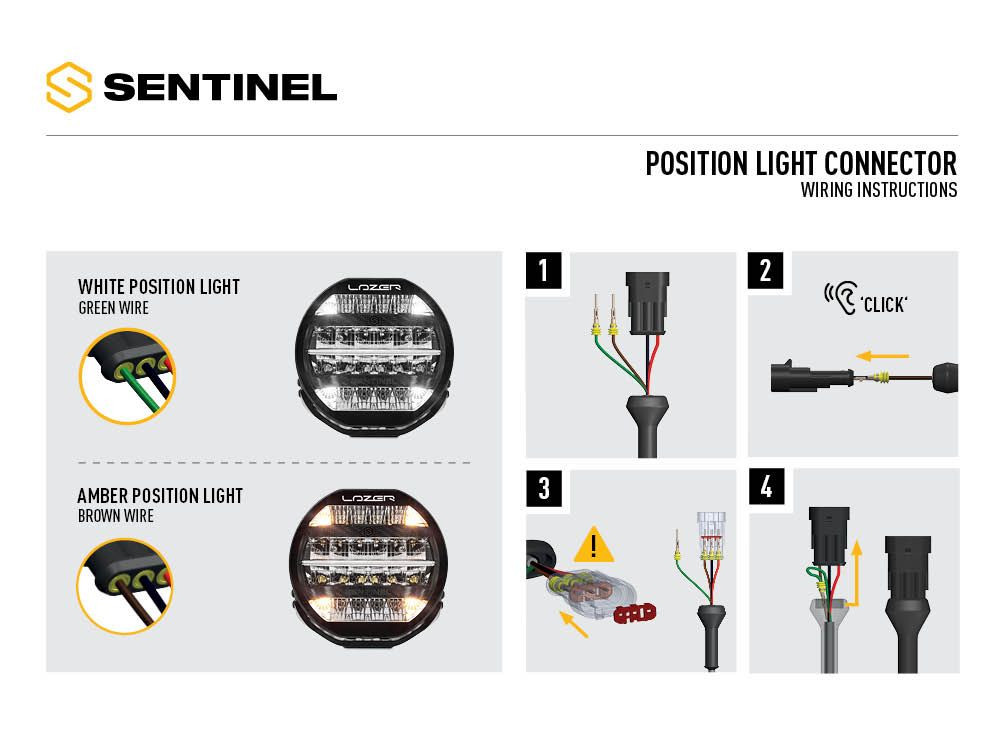

Position Light (White) ECE R7 ECE R7

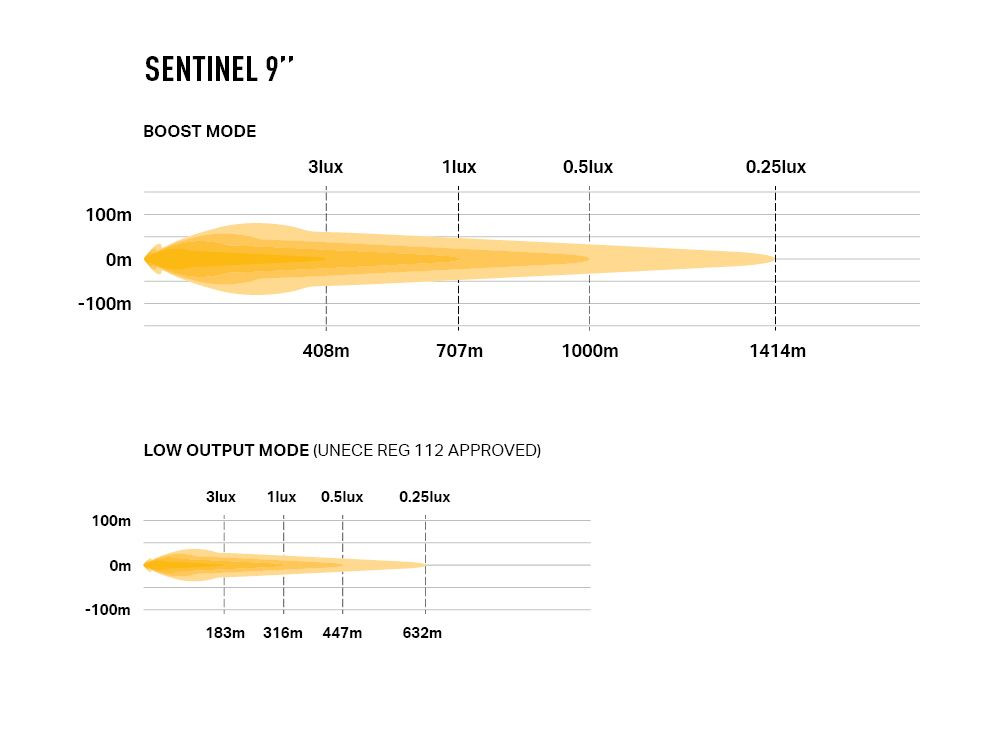

Photometric data
Horiz Beam Angle 52 Deg 52 Deg
0.25 lx Line 1414 metres 632 metres
0.5 lx Line 1000 metres 447 metres
1 lx Line 707 metres 316 metres
3 lx Line 408 metres 183 metres
* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
