Details
What's included:

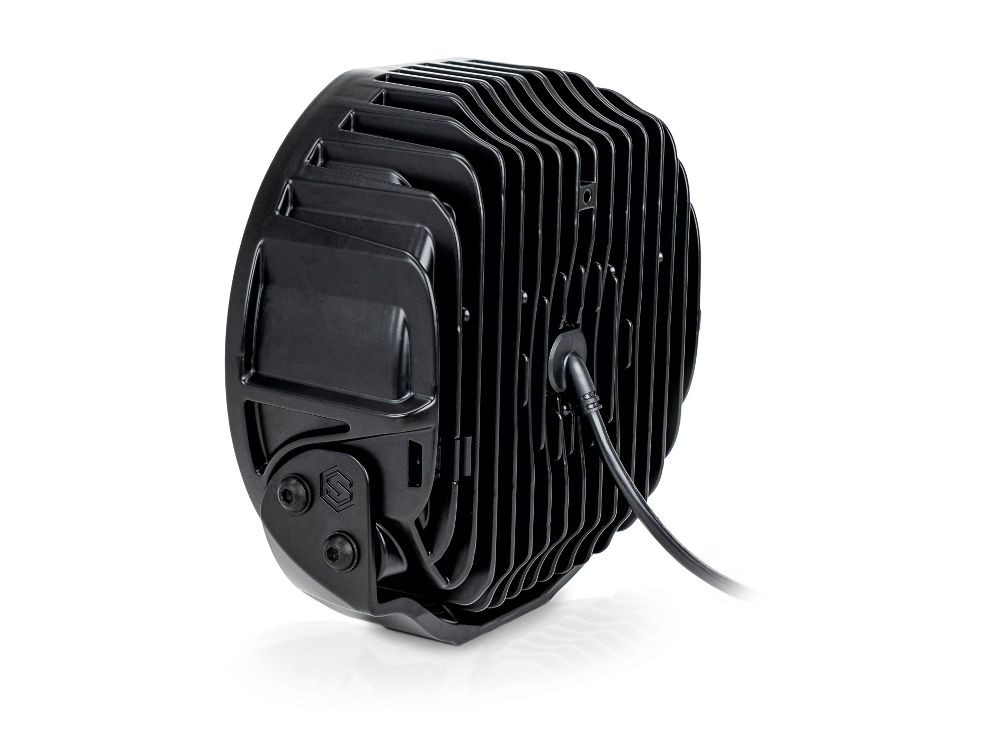

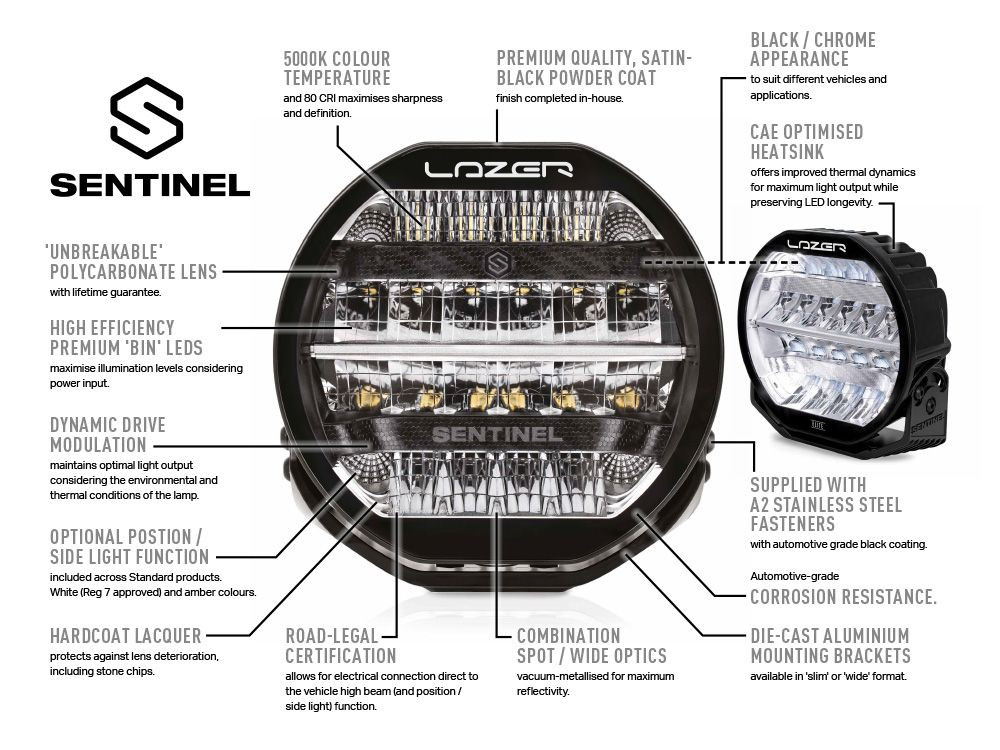

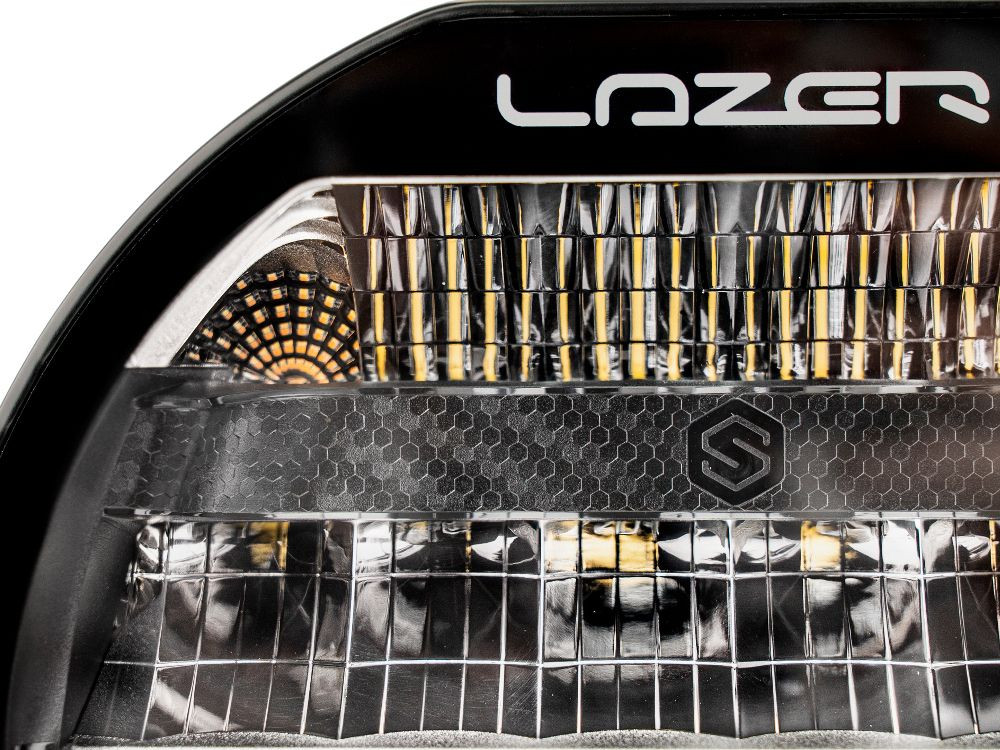

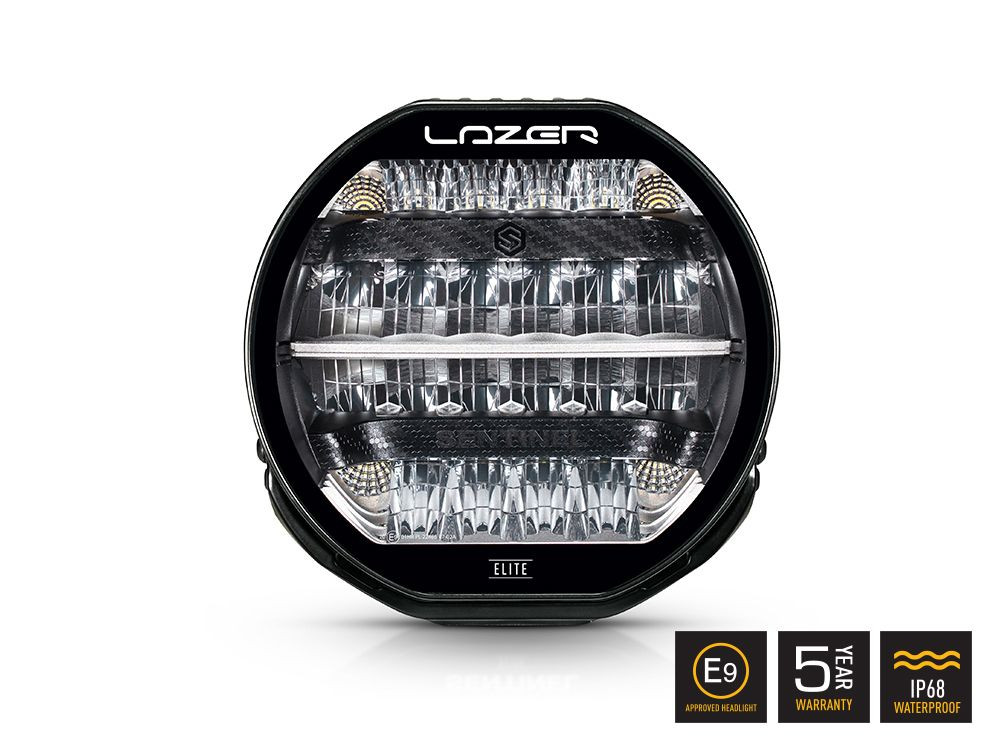

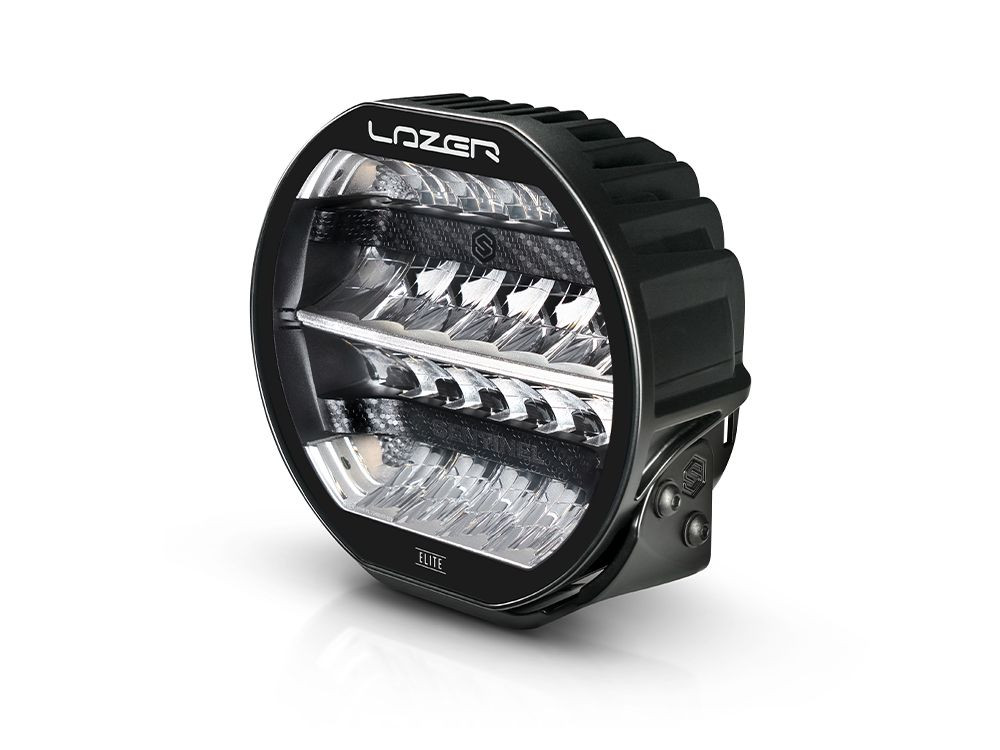

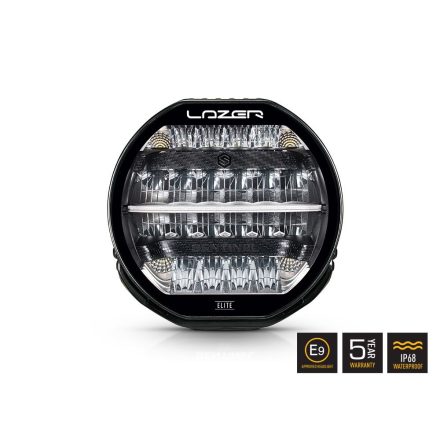

• x1 Sentinel Elite (Black) LED Lamp

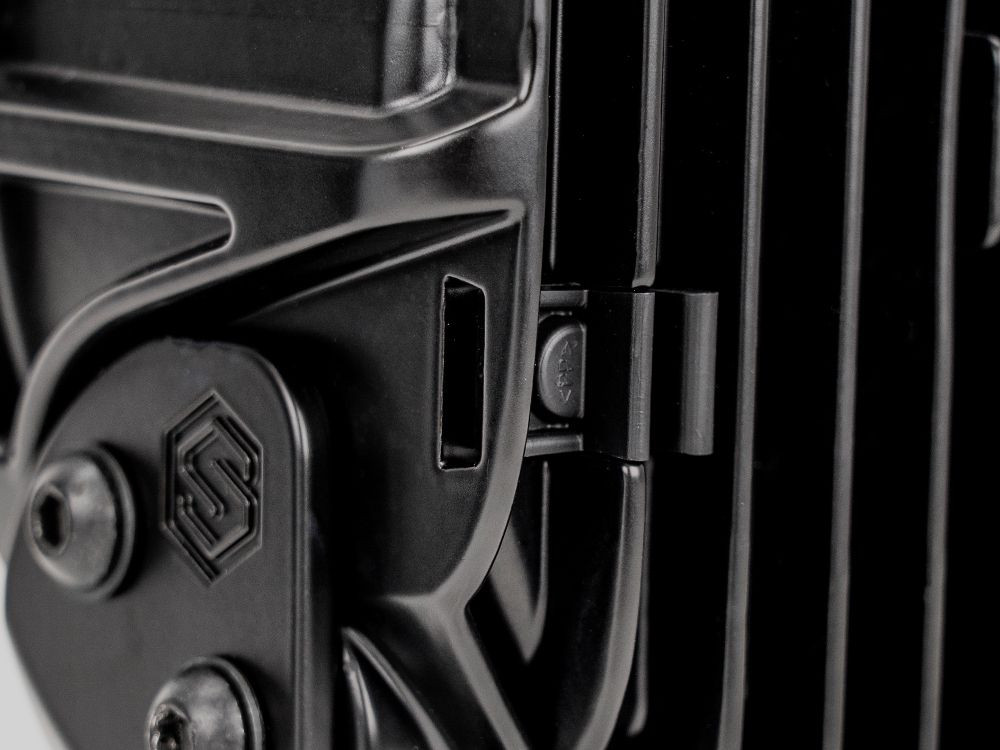

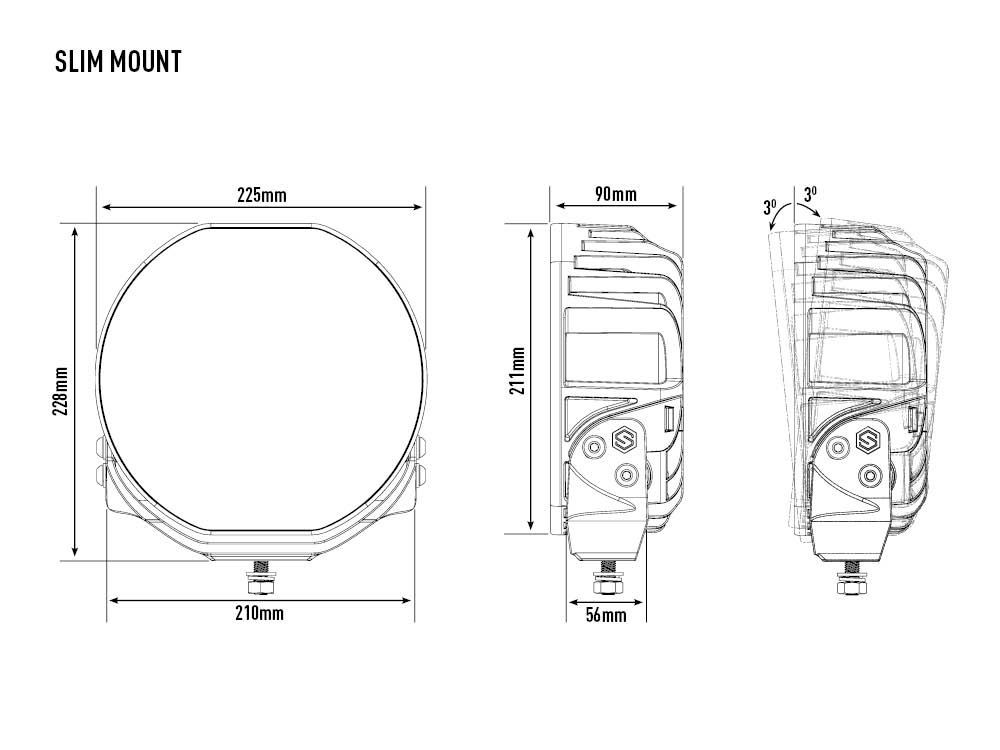

• x1 ’Slim’ Mount Kit (1141k)
• x1 ’Lazer’ Black Lens Cover (LC-BLK-0S9)
• x1 Installation Instructions
Technical specifications: E-Boost E-Mark Mode
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 2.5 kg 2.4 kg
High beam function
Total Luminous Flux 15232 Lm 3046 Lm
Colour Temperature 5000k 5000k
Number of High Output LEDs 32 32
Power Consumption 145 Watts 29 Watts
Peak Current Draw (10v) 14.7 Amps 2.9 Amps
Current Draw (at 14.4V) 10.1 Amps 2 Amps
Start-up Time * 5ms 5ms
Certification
High Beam N/A ECE R112
E-Mark Ref N/A 20

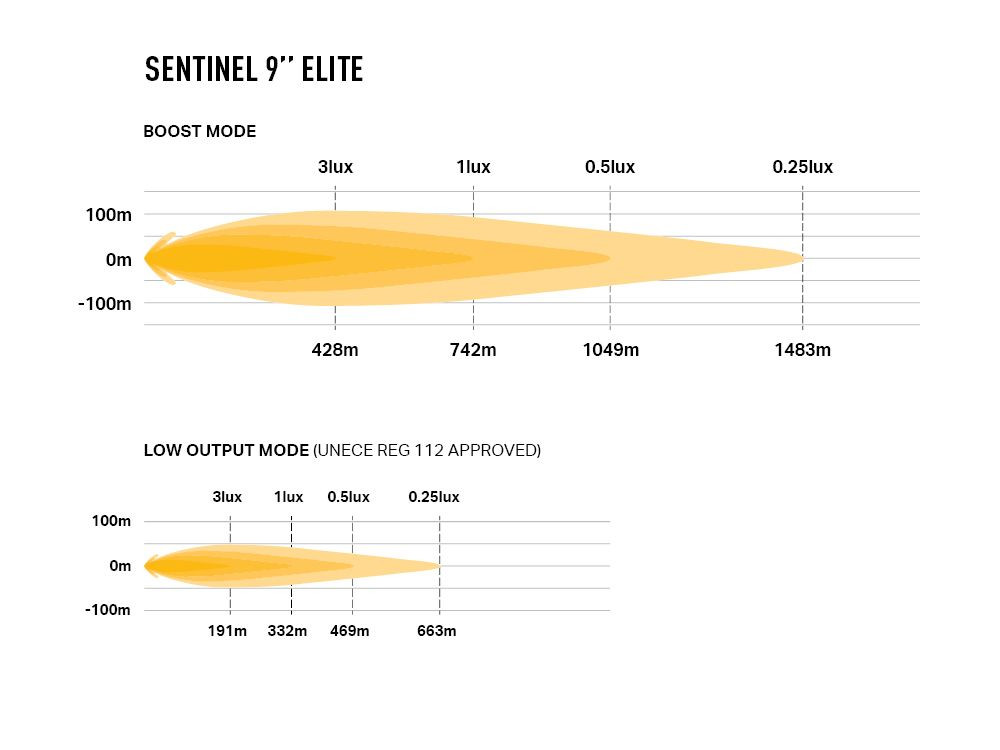

Photometric data
Horiz Beam Angle 52 Deg 52 Deg
0.25 lx Line 1483 metres 663 metres
0.5 lx Line 1049 metres 469 metres
1 lx Line 742 metres 332 metres
3 lx Line 428 metres 191 metres
* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
