Details
SPECIFICATION
What's included:

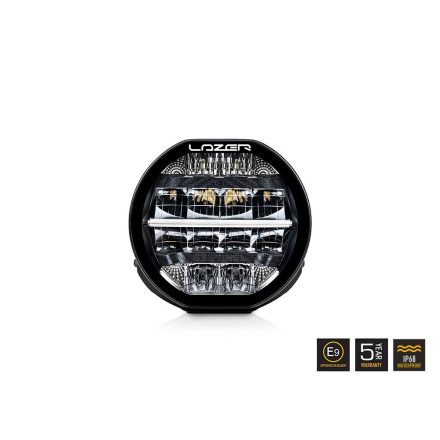

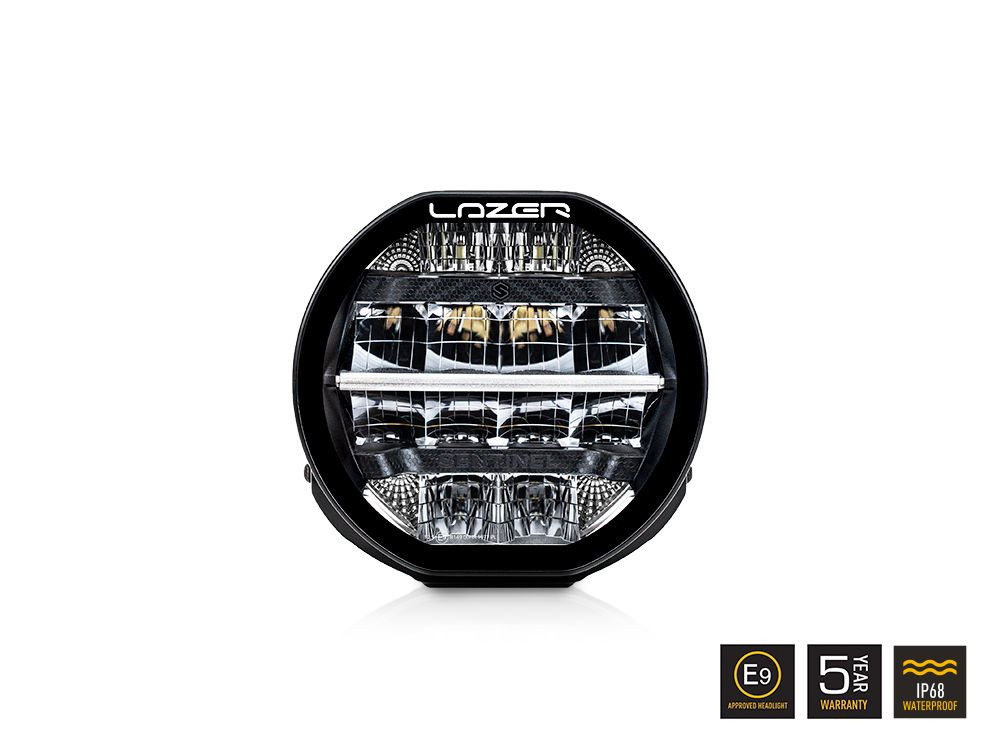

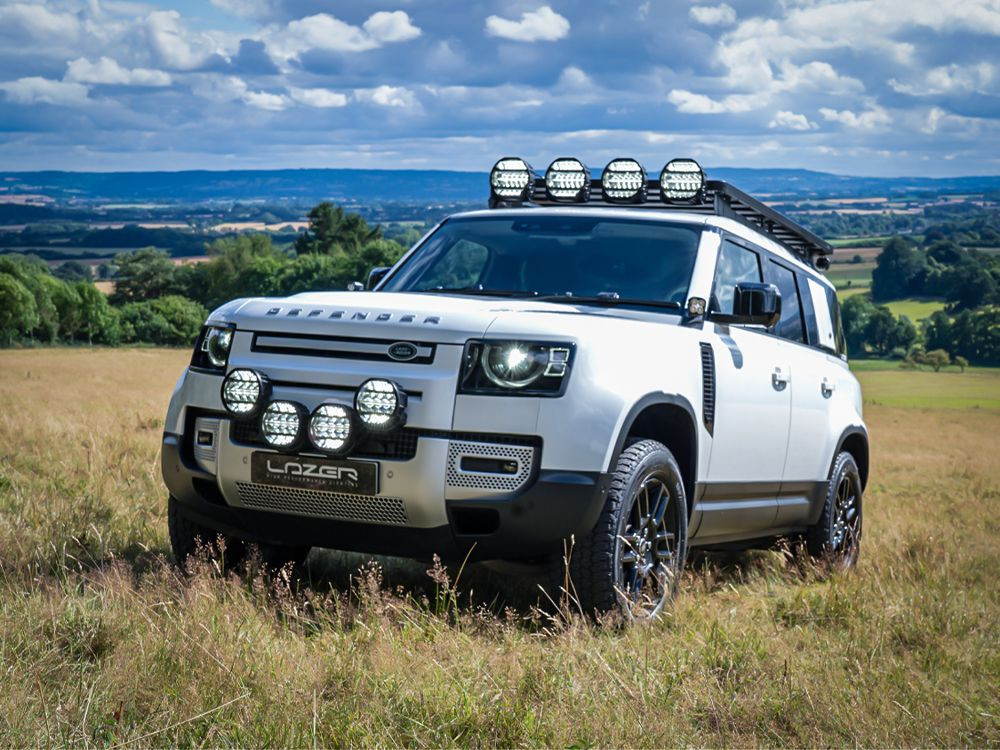

• x1 Sentinel 7” Standard LED Lamp
• x1 ’Slim’ Mount Kit (1141-0S7- K)
• x1 Installation Instructions

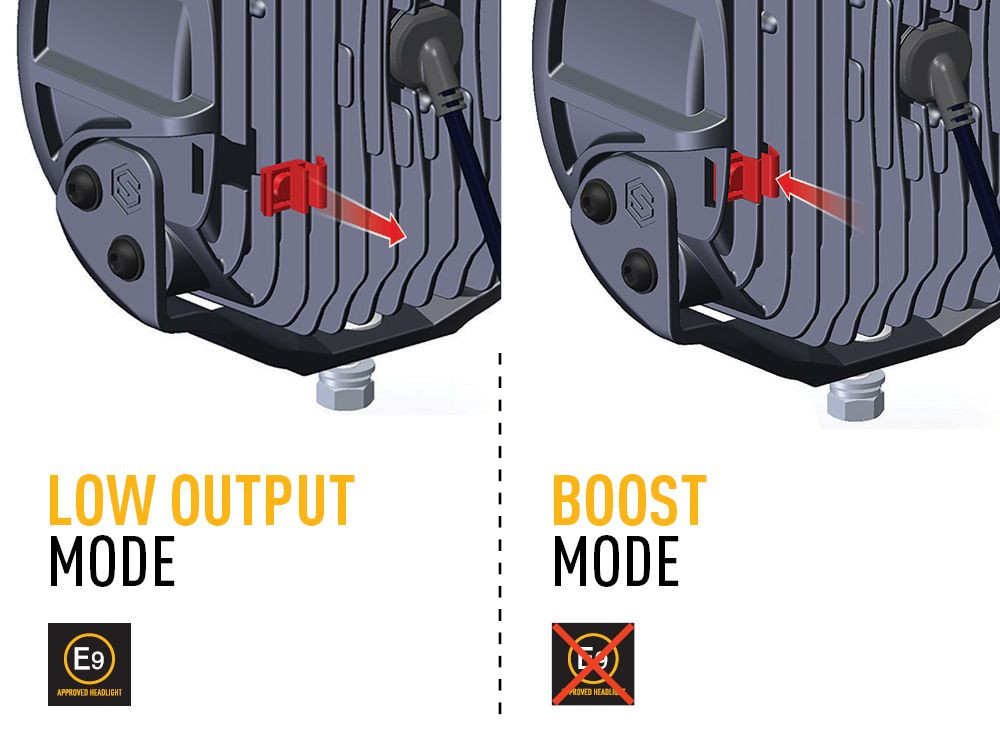

Technical specifications: E-Boost E-Mark Mode
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 1.5 kg 1.5 kg
High beam function
Total Luminous Flux 5208 Lm 1041 Lm
Colour Temperature 5000k 5000k
Number of High Output LEDs 12 12
Power Consumption 64 Watts 12.4 Watts
Peak Current Draw (10v) 5.7 Amps 1.1 Amps
Current Draw (at 14.4V) 4.3 Amps 0.9 Amps
Start-up Time * 5ms 5ms
Certification
High Beam N/A ECE R148
E-Mark Ref N/A 12.5

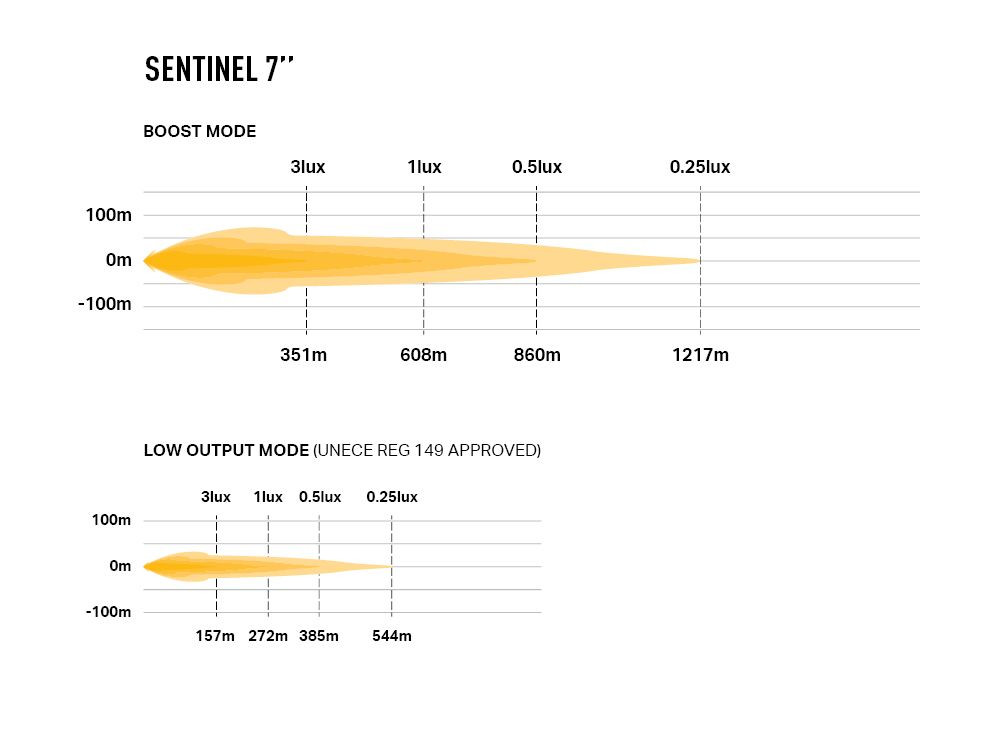

Photometric data

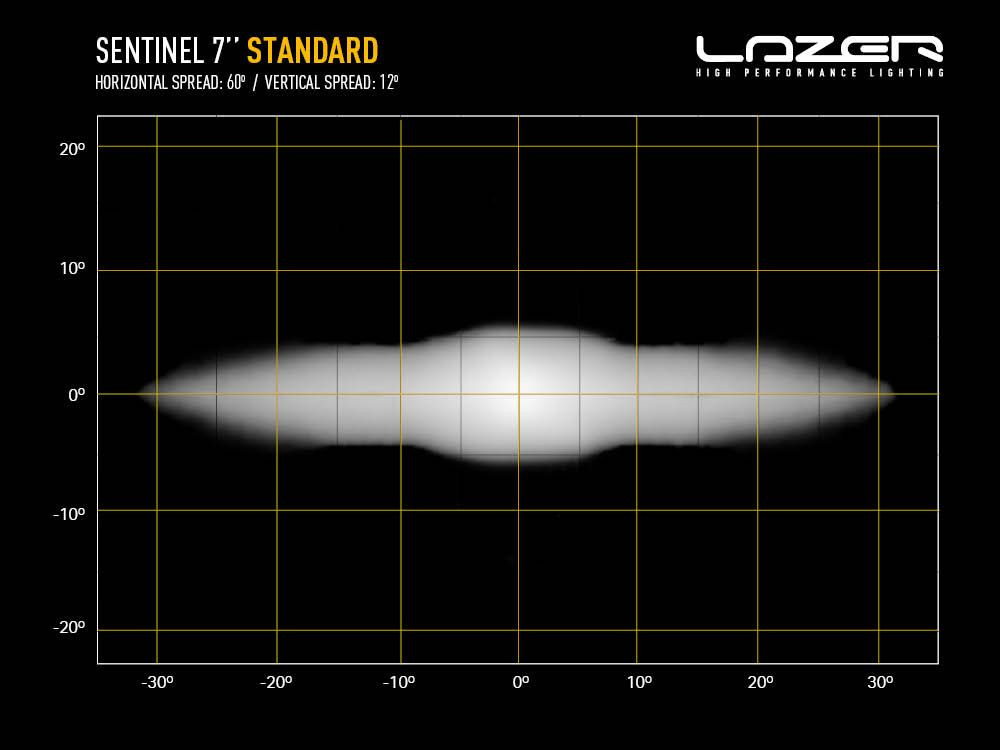

Horiz Beam Angle 60 Deg 60 Deg
0.25 lx Line 1217 metres 544 metres
0.5 lx Line 860 metres 385 metres
1 lx Line 608 metres 272 metres
3 lx Line 351 metres 157 metres
* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
