Details
What's included:

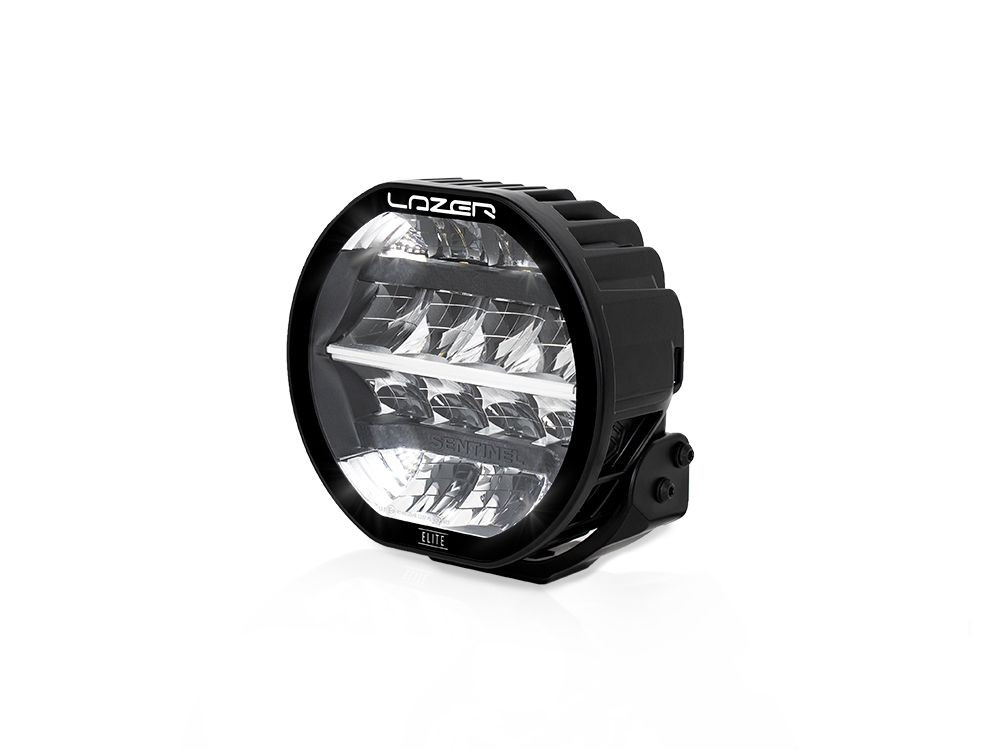

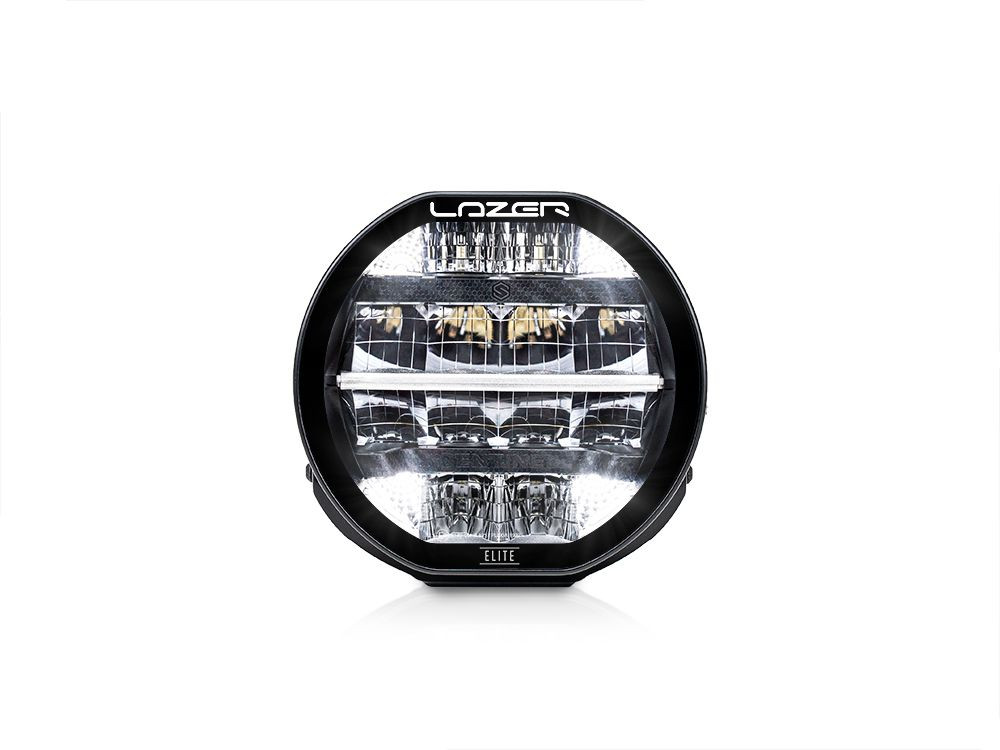

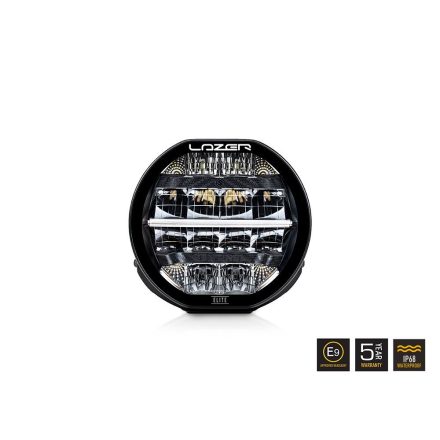

• x1 Sentinel 7” Elite LED Lamp
• x1 ’Slim’ Mount Kit (1141-0S7- K)
• x1 Black Lens Cover (LC-0S7-BLK)
• x1 Installation Instructions

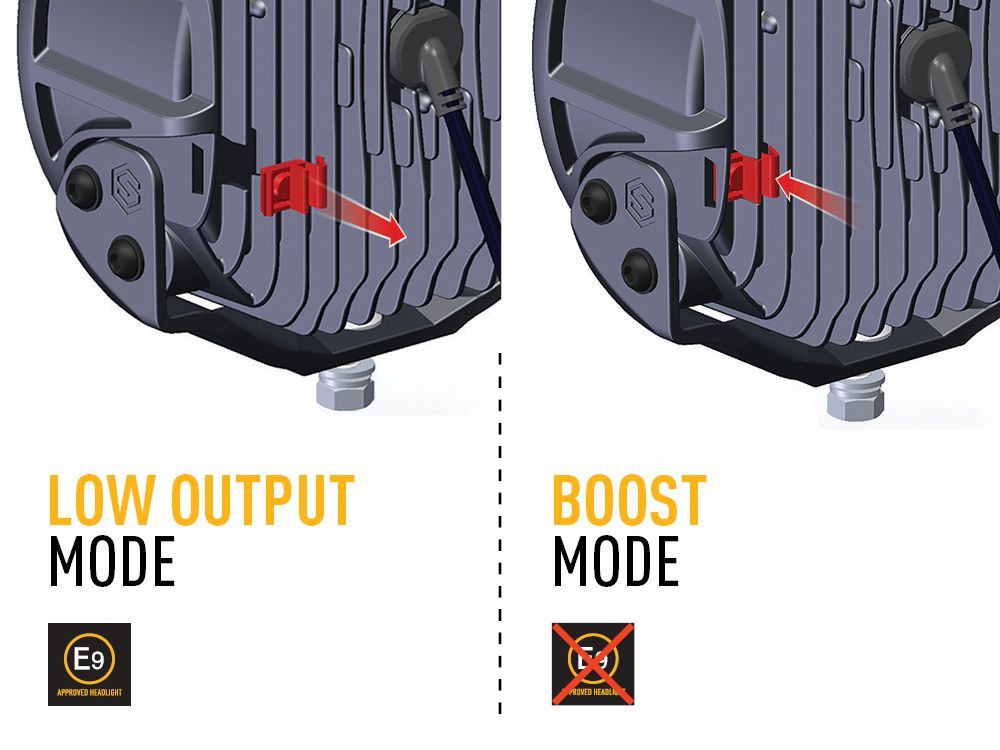

Technical specifications: E-Boost E-Mark Mode
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 1.5 kg 1.5 kg
High beam function
Total Luminous Flux 10248 Lm 2049 Lm
Colour Temperature 5000k 5000k
Number of High Output LEDs 24 24
Power Consumption 110 Watts 22 Watts
Peak Current Draw (10v) 8.8 Amps 1.8 Amps
Current Draw (at 14.4V) 7.6 Amps 1.5 Amps
Start-up Time * 5ms 5ms

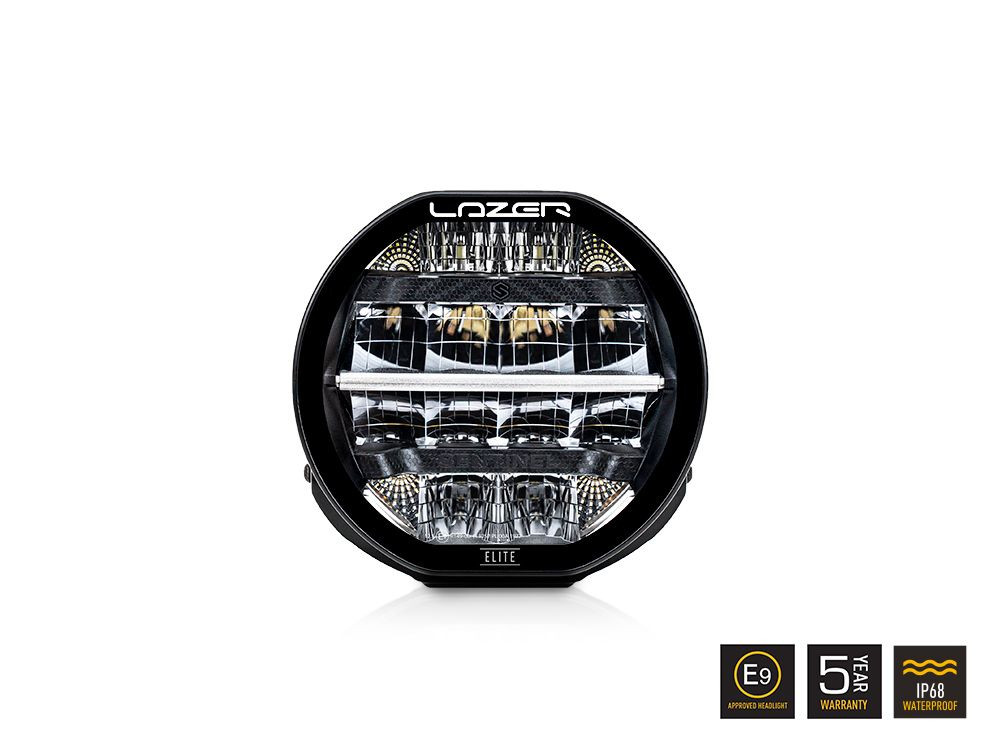

Certification
High Beam N/A ECE R148
E-Mark Ref N/A 12.5
Position Light (White) ECE R149 ECE R149

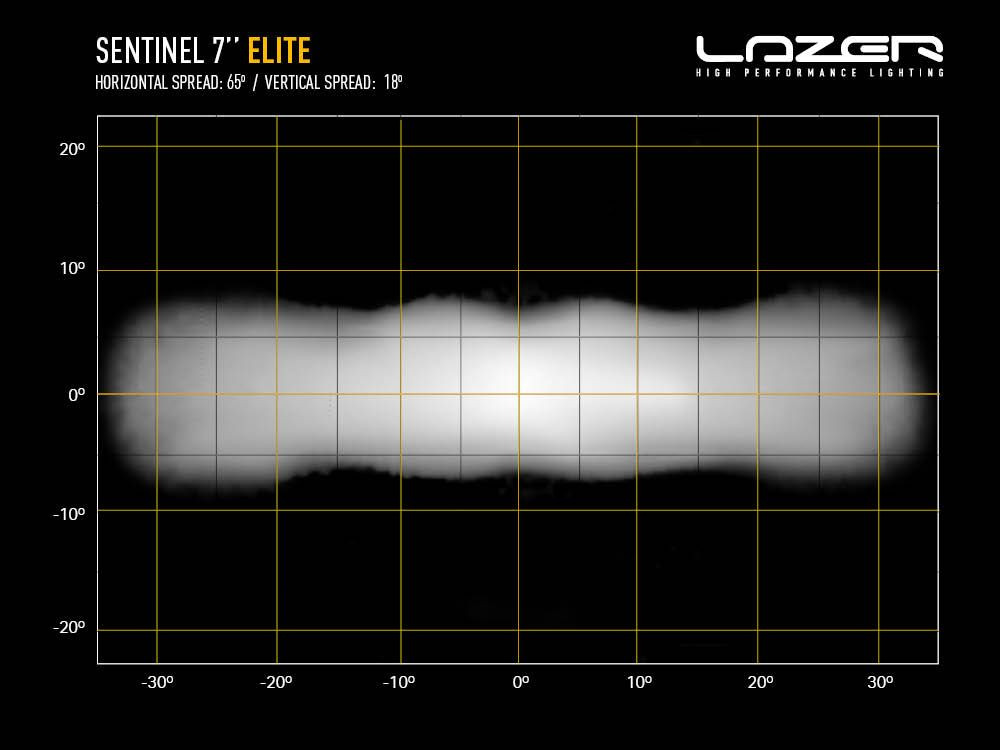

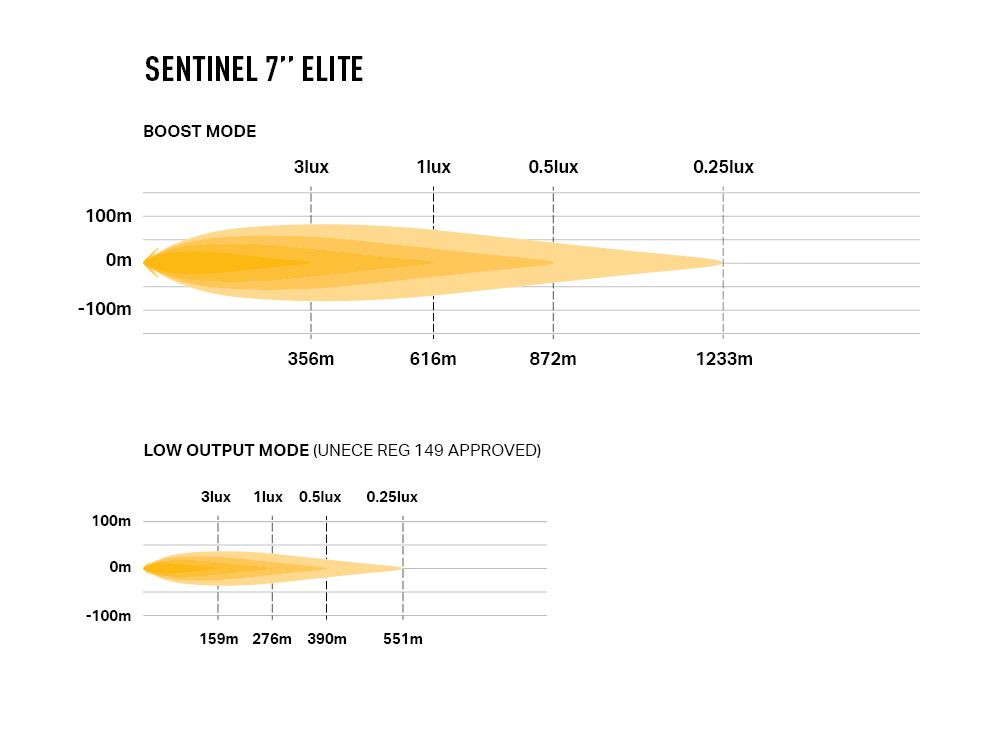

Photometric data
Horiz Beam Angle 65 Deg 65 Deg
0.25 lx Line 1233 metres 551 metres
0.5 lx Line 872 metres 390 metres
1 lx Line 616 metres 276 metres
3 lx Line 356 metres 159 metres
* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
