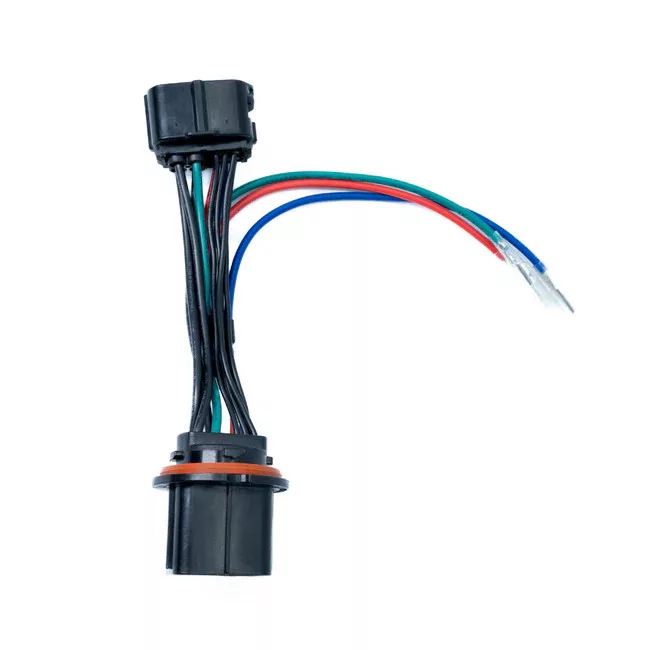

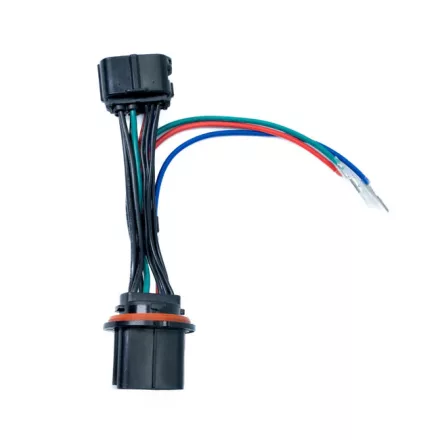

This specifically designed patch harness is for the 2nd GEN Isuzu MUX, that allows for simple and safe integration into the vehicle’s headlight assembly, without cutting or splicing into the electrical system.
Provides high beam positive, high beam negative and low beam pickup points for Lightforce driving light wiring harness.
This patch harness is to be used with the range of Lightforce wiring harness and factory style switches for a true plug & play solution, enabling simple DIY installation of auxiliary driving lights and switches.
Installation Guide
This patch harness has been made to integrate into the existing factory headlight connector that is located on the lower back of the vehicle's headlight assemblies.
- Remove the existing factory 8-pin connector from the back of the headlight (left or right side). There is a locking tab that must be depressed before removing the connector.
- Fit the corresponding new connector to the connector that has just been removed until it clicks into place.
- Fit the remaining new connector to the original connector affixed to the headlight assembly until it clicks into place.
Specifications
Connector: 10-pin Patch harness
Length: 150mm
Outputs: High beam positive, high beam negative, low beam
- Red - High beam positive pickup wire
- Green - High beam negative pickup wire
- Blue - Low beam pickup wire (optional connection)
