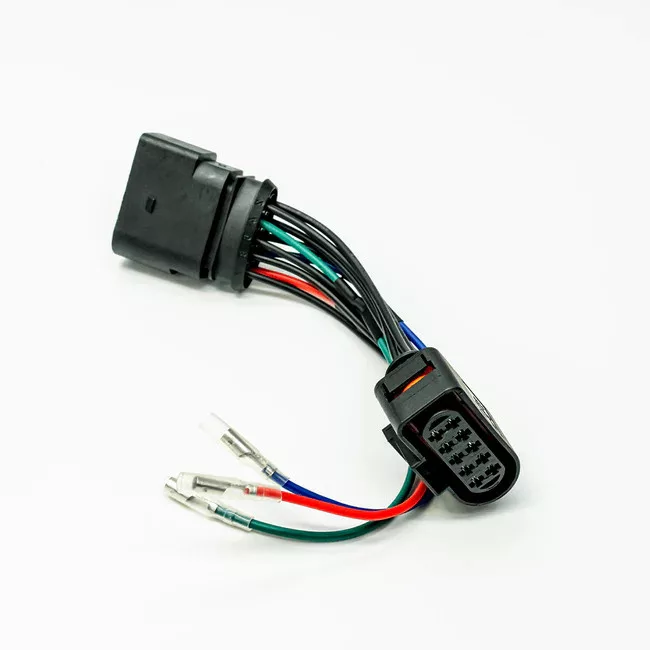

LightFORCE Headlight Patch Harness Suitable for Holden RG Colorado

Name: LightFORCE Headlight Patch Harness Suitable for Holden RG Colorado
SKU: CB10PINH
Price: 29 EUR

It uses the OEM connection point on the back of the headlight assembly. You no longer need to put a hole in the dust cover or splice a wire into the OEM harness for auxiliary driving lights, simply:

Remove the existing OEM 10 pin connector from the back of the headlight (left or right side) there is a locking tab that must be depressed while removing the connector

Fit the corresponding new connector to the OEM connector that has just been removed

Fit the remaining new connector to the original OEM connector affixed to the headlight assembly

Then connect the corresponding connectors from anyone of our listed compatible wiring harnesses.

Learn more

29.00 €

Details

WIRING

Red wire is from the vehicles positive high beam circuit and is used to trigger the positive signal on an auxiliary relay for driving lights.

Green wire is from the vehicles negative circuit and is used to trigger the negative signal on an auxiliary relay for driving lights.

Both red & green wires must be connected

Blue wire is from the vehicles positive low beam headlight, for uses with positioning or DLR lights (fitment optional)

Compatible with the following Lightforce wiring harnesses

# LFDLHTS2 - Genesis / Venom

# LFDLHDS - HTX MK1/MK2

# LFDLHSS - 12V Single Switching harness

# LFLBHVSR/LFLBHVDR- Viper Light Bar

# LFDLHBEAST-U BEAST LED Driving Lights Wiring Kit – Universal Fitment

Vehicle Compatibility

Make	Model	Compatible From	Compatible To
Holden	Colorado	2012	2021
Holden	Colorado RG	2012	2020
Holden	Trailblazer	2017	2021
Holden	Colorado (fitted with LF fascia)	2012	2021

Data

Item number

CB10PINH
